Summary:

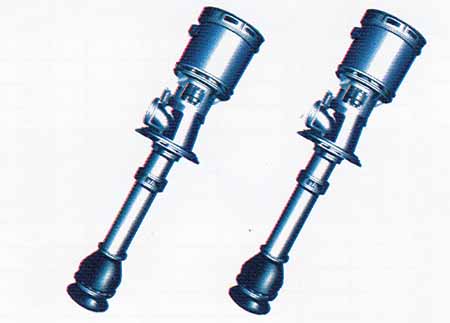

FYL series of vertical long axis of the pump, using submerged impeller, vertical installation. It has a compact, smooth, easy operation, easy maintenance, small footprint; universal, high degree of standardization of advantages. Is the company absorbed the world's developed countries pump type vertical long axis design and advanced manufacturing experience, to adapt to China's market demand for research and development of advanced and mature products.
The product has an industrial water supply and drainage; urban industrial sites drinking water, fire and river, lakes, sea water and other purposes, for metallurgy, mining, chemicals, paper, and hydroelectric power plants.
type number Meaning:
1-- pump discharge diameter (100 to 700). Unit mm.
2-- vertical long axis pump series code FYL.
3-- series impeller (impeller series is 1:00 omitted).
4-- total nominal pump head. Unit: m.
5-- cutting impeller code. In A, B shown of.
6-- intermediate tube pump number N (0.1.2 ......, intermediate tube number 1 omitted).
7-- material category. Points Ⅰ, Ⅱ, Ⅲ, Ⅳ (Ⅱ class material can be omitted).
Wherein 1, 2, 3, 4, 5 basic type of pump number, 6, 7 for the user specified order required.
Spit caliber 350mm vertical long axis pump, two wheel, total lift of 60 meters, - cuts.
